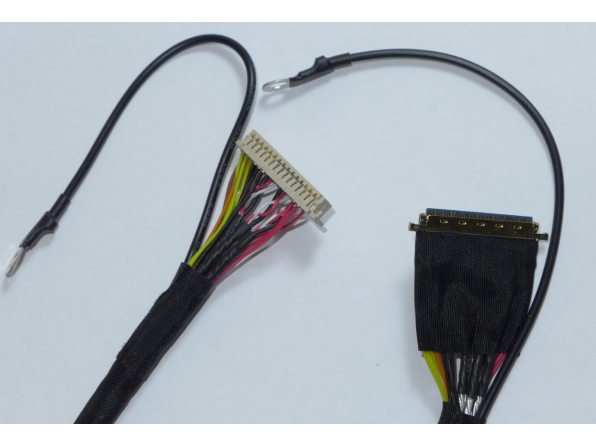

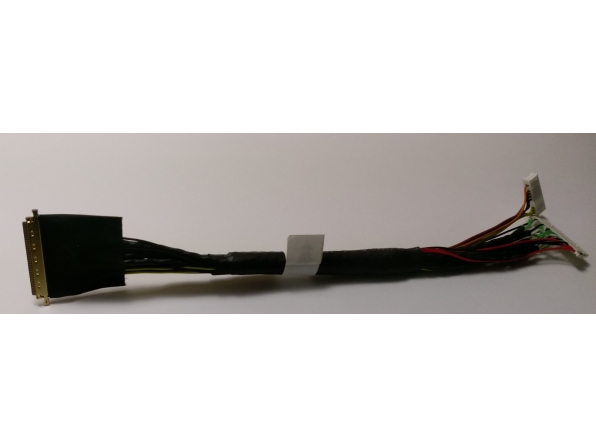

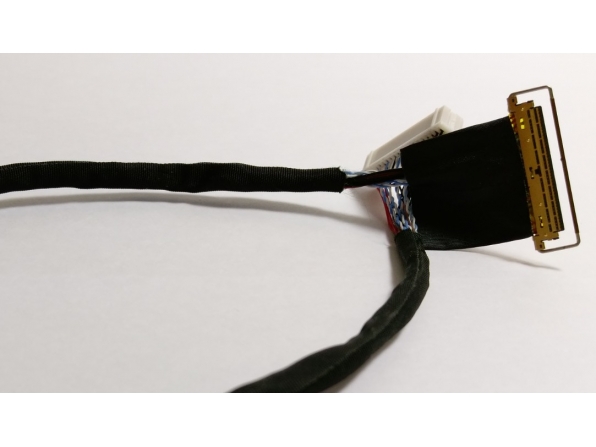

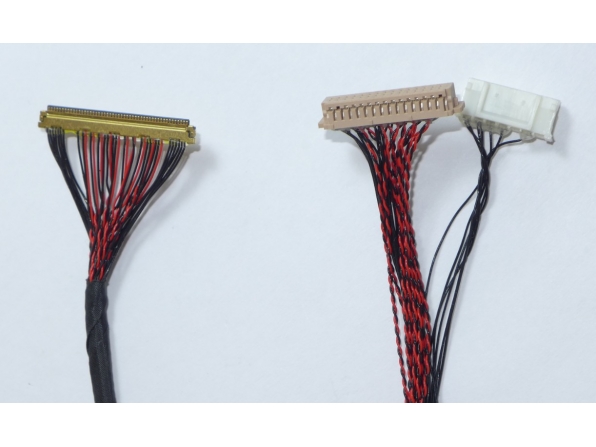

I-PEX Micro Coax / Micro Coaxial cable connector CABLINE-CBL
0.4mm Pitch Horizontal typeMating Height : 0.975mm.
Improved transmission efficiency, high level EMI shield performance and multi point ground.
"" conatct with High mating reliability.
Anti-reverse mating design.
Locking bar prevents accidental unmating (Option)

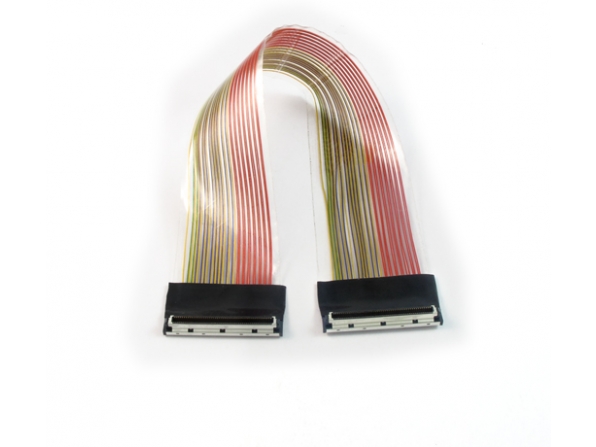

I-PEX Micro Coax / Micro Coaxial cable connector CABLINE-VS
0.5mm Pitch Horizontal type
Mating Height : Max. 1.1mm.
Improved transmission efficiency, High level EMI shield performance and multi point ground.
"W-Point" contact with High mating reliability.
Anti-reverse mating design.
Locking bar prevents accidental unmating (option).
